Render an adjusted draggable plot with labels

Usage

render_dragged_map(
  x,
  region_offsets = NULL,
  region_col,
  label_col = region_col,
  label_offsets = NULL,
  labels = NULL,
  label_values = NULL,
  region_palette = NULL,
  region_labels = NULL,
  show_legend = TRUE,
  max_legend_keys = 25L,
  legend_position = c("bottom", "top", "left", "right", "none"),
  legend_title = "Region",
  legend_values = NULL,
  title = NULL,
  label_size = 3.4,
  show_label_marker = TRUE,
  label_marker_shape = c("circle", "rect", "none"),
  marker_size = 3.2,
  marker_fill = "white",
  marker_color = "black",
  marker_stroke = 0.8,
  box_label_size = 3,
  box_fill = "white",
  box_color = "black",
  box_wrap = 24,
  connector_color = "#334155",
  connector_linewidth = 0.35,
  connector_linetype = "solid",
  connector_endpoint = c("none", "arrow"),
  connector_curvature = 0.18,
  connector_squiggle_amplitude = 12000,
  connector_squiggle_waves = 4,
  connector_end_gap = NULL,
  show_origin_outlines = FALSE,
  show_movement_connectors = FALSE,
  show_movement_band = FALSE,
  movement_connector_color = "#64748b",
  movement_connector_opacity = 0.72,
  movement_connector_linewidth = 0.45,
  movement_connector_linetype = c("solid", "dashed", "dotted"),
  movement_connector_endpoint = c("closed", "open", "none"),
  label_padding = 0.08,
  map_background = c("white", "transparent", "light_grid", "dark"),
  file = NULL,
  width = 8,
  height = 6,
  dpi = 300
)

Arguments

x: An sf object in a projected CRS.
region_offsets: Region offsets as a data frame, CSV path, or NULL.
region_col: Column defining draggable groups.
label_col: Column used for default region-label text. Defaults to region_col.
label_offsets: Label state as a data frame, CSV path, or NULL.
labels: Optional label table from make_region_labels() or as_drag_labels(). Use FALSE to omit labels from the static render.
label_values: Optional character vector of label IDs to render. NULL renders all labels.
region_palette: Optional named vector of fill colors keyed by region.
region_labels: Optional named vector of legend labels keyed by region.
show_legend: Show the region fill legend. When the number of distinct regions exceeds max_legend_keys, the legend is suppressed regardless of this setting (with an informational message).
max_legend_keys: Maximum number of legend keys before the legend is automatically hidden. Defaults to 25. Set Inf to always show.
legend_position: Position of the fill legend in static exports. One of "bottom", "top", "left", "right", or "none".
legend_title: Title shown above the fill legend. Defaults to "Region".
legend_values: Optional character vector of region values to include in the legend. NULL includes all region values.
title: Optional plot title.
label_size: Text size passed to ggplot2::geom_text(). Defaults to 3.4.
show_label_marker: Draw markers behind ordinary text labels. Use FALSE for text-only labels.
label_marker_shape: Marker shape for ordinary text labels in static exports. One of "circle", "rect", or "none". If show_label_marker = FALSE, this is treated as "none".
marker_size: Point size passed to ggplot2::geom_point(). Defaults to 3.2.
marker_fill: Fill colour of the label marker circle. Defaults to "white".
marker_color: Stroke colour of the label marker circle. Defaults to "black".
marker_stroke: Stroke width of the label marker circle. Defaults to 0.8.
box_label_size: Text size for annotation boxes. Defaults to 3.
box_fill, box_color: Fill and border colours for annotation boxes.
box_wrap: Approximate character width used to wrap annotation-box text.
connector_color, connector_linewidth, connector_linetype: Static export styling for label connector lines.
connector_endpoint: Connector endpoint style. One of "none" or "arrow".
connector_curvature: Curvature used by "curve" connectors.
connector_squiggle_amplitude, connector_squiggle_waves: Appearance of "squiggle" connectors in static exports. connector_squiggle_amplitude is in the same coordinate units as the projected CRS. For common metre-based CRSs such as EPSG:3857, the value is metres; for degree-based or custom projected CRSs, use that CRS's units. The default of 12000 is tuned for country-scale metre-based datasets; scale it up or down to match your data extent.
connector_end_gap: Distance, in plot units, to trim connector endpoints away from label centers. Defaults to an automatic value based on plot size.
show_origin_outlines: Show the original, unshifted outlines of regions with non-zero offsets beneath the moved regions.
show_movement_connectors: Draw a connector from each moved region's original representative point to its translated location.
show_movement_band: Draw a swept shadow between each region's original footprint and its translated position. The shadow is built from the actual polygon boundary, so it follows the shape of the region rather than a flat bounding-box band.
movement_connector_color, movement_connector_opacity, movement_connector_linewidth: Static export styling for movement connectors and the swept movement shadow.
movement_connector_linetype: Movement connector line style. One of "solid", "dashed", or "dotted".
movement_connector_endpoint: Movement connector endpoint. One of "none", "open", or "closed".
label_padding: Proportional padding added around displaced labels and connectors to avoid clipping static exports.
map_background: Static map background. One of "white", "transparent", "light_grid", or "dark".
file: Optional output image path. When supplied, ggplot2::ggsave() saves the plot.
width, height, dpi: Output settings used when file is supplied.

Value

A ggplot object.

Examples

# render_dragged_map() is an optional static-export step.
# The primary workflow is drag_map_prototype(open = TRUE): open the
# interactive HTML, drag regions and labels to your liking, then
# copy or download the offset CSVs.  Only call render_dragged_map()
# if you also need a reproducible ggplot2 image from those offsets.
if(interactive()){
# Step 1 (always): open the interactive draggable plot.
drag_map_prototype(poly, region_col = "region", open = TRUE)

# Step 2 (optional): after dragging, reconstruct as a static image.
region_offsets <- read_offsets("my_region_offsets.csv")
render_dragged_map(poly, region_col = "region",
                  region_offsets = region_offsets)
}

# Minimal runnable example (no prior dragging session needed).
poly <- sf::st_sf(
  region = c("A", "B"),
  geometry = sf::st_sfc(
    sf::st_polygon(list(rbind(c(0,1e5),c(1e5,1e5),c(1e5,2e5),c(0,2e5),c(0,1e5)))),
    sf::st_polygon(list(rbind(c(0,0),c(1e5,0),c(1e5,1e5),c(0,1e5),c(0,0)))),
    crs = 3857
  )
)

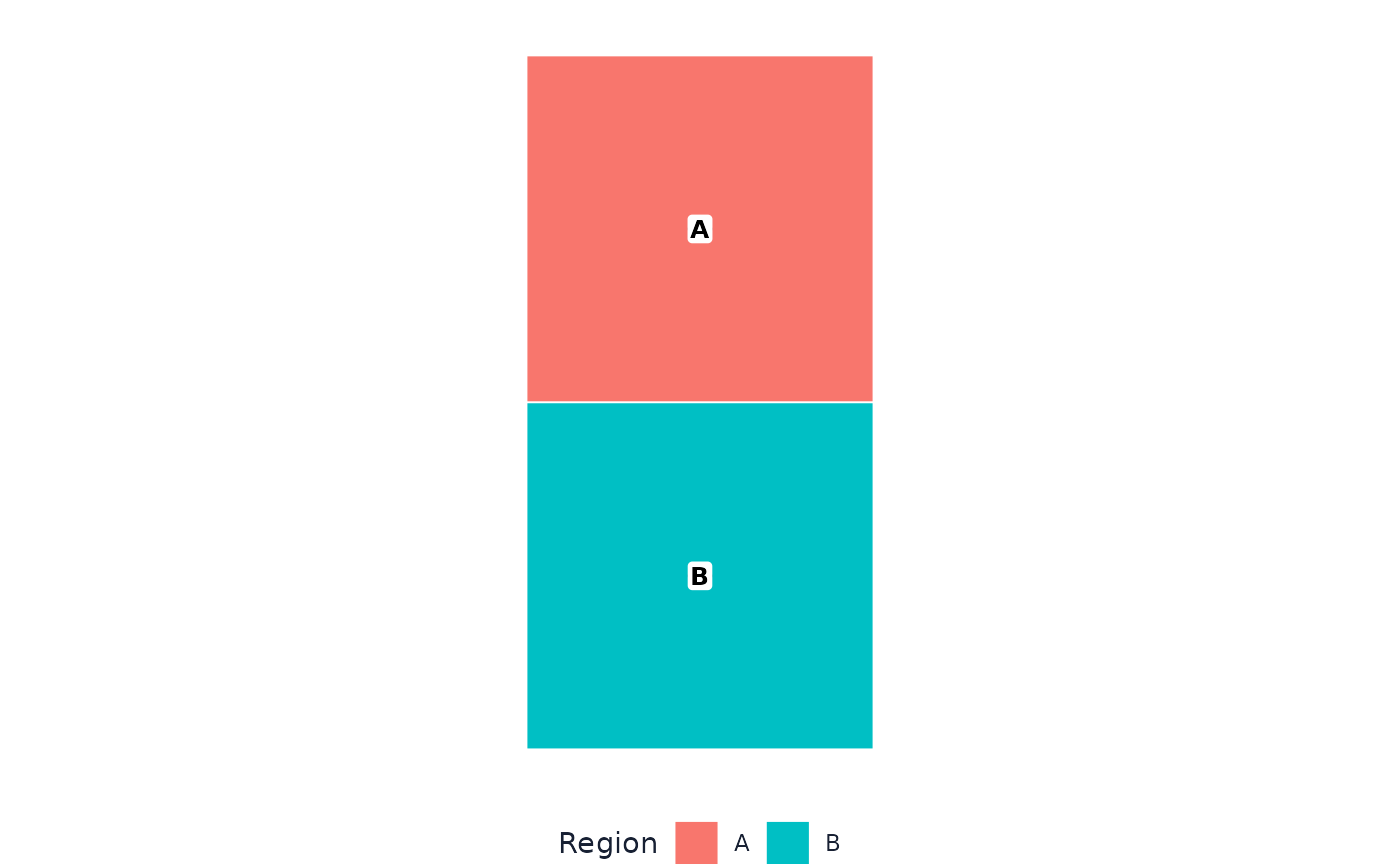

render_dragged_map(poly, region_col = "region")
